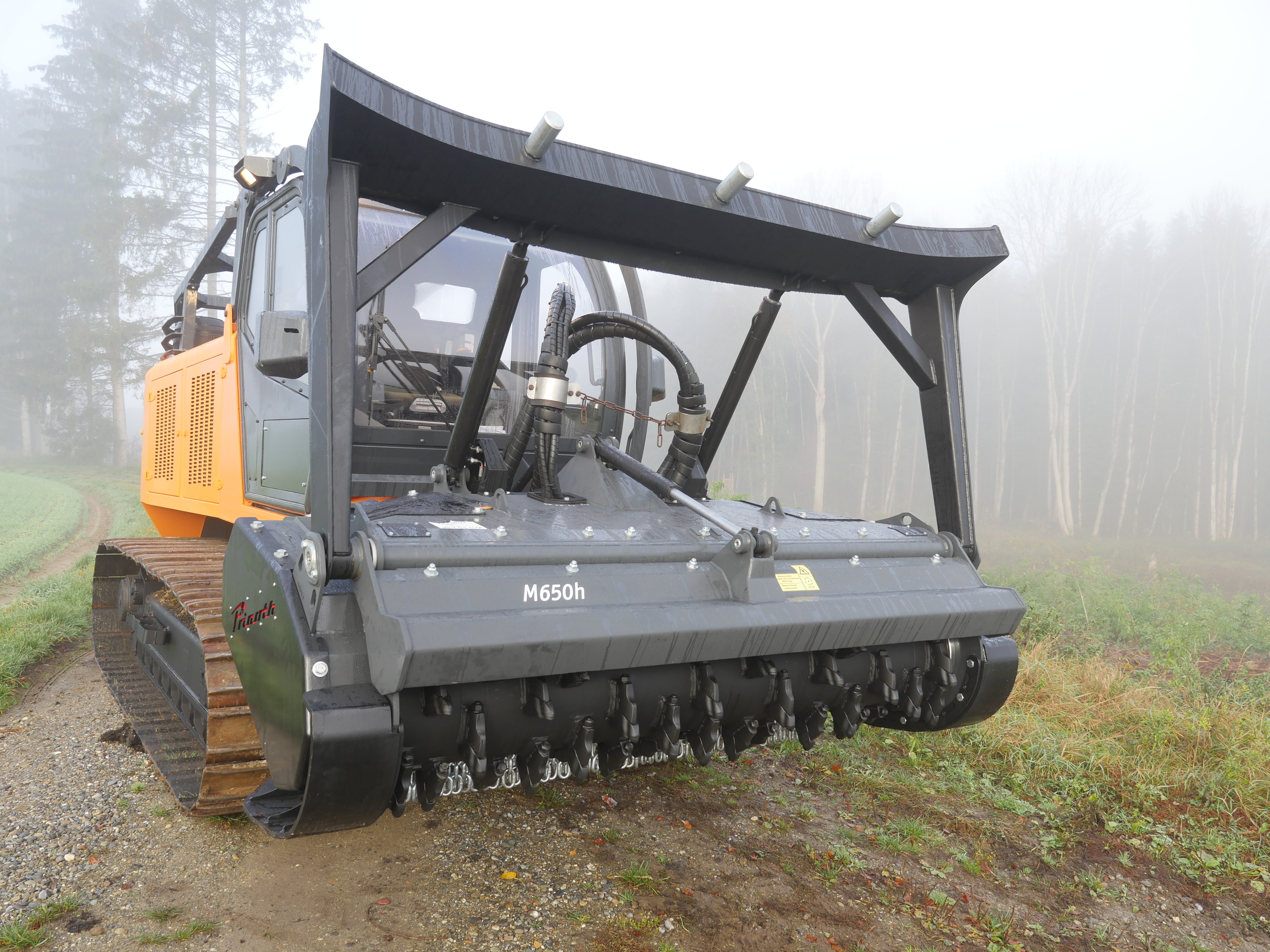

GRIZZLY M650h
Hydraulic driven mulcher for hydraulic carriers with a volume flow upto 570 l/min.
Working width
Total width
Weight
Heavy duty Mulcher for strong hydraulic carriers

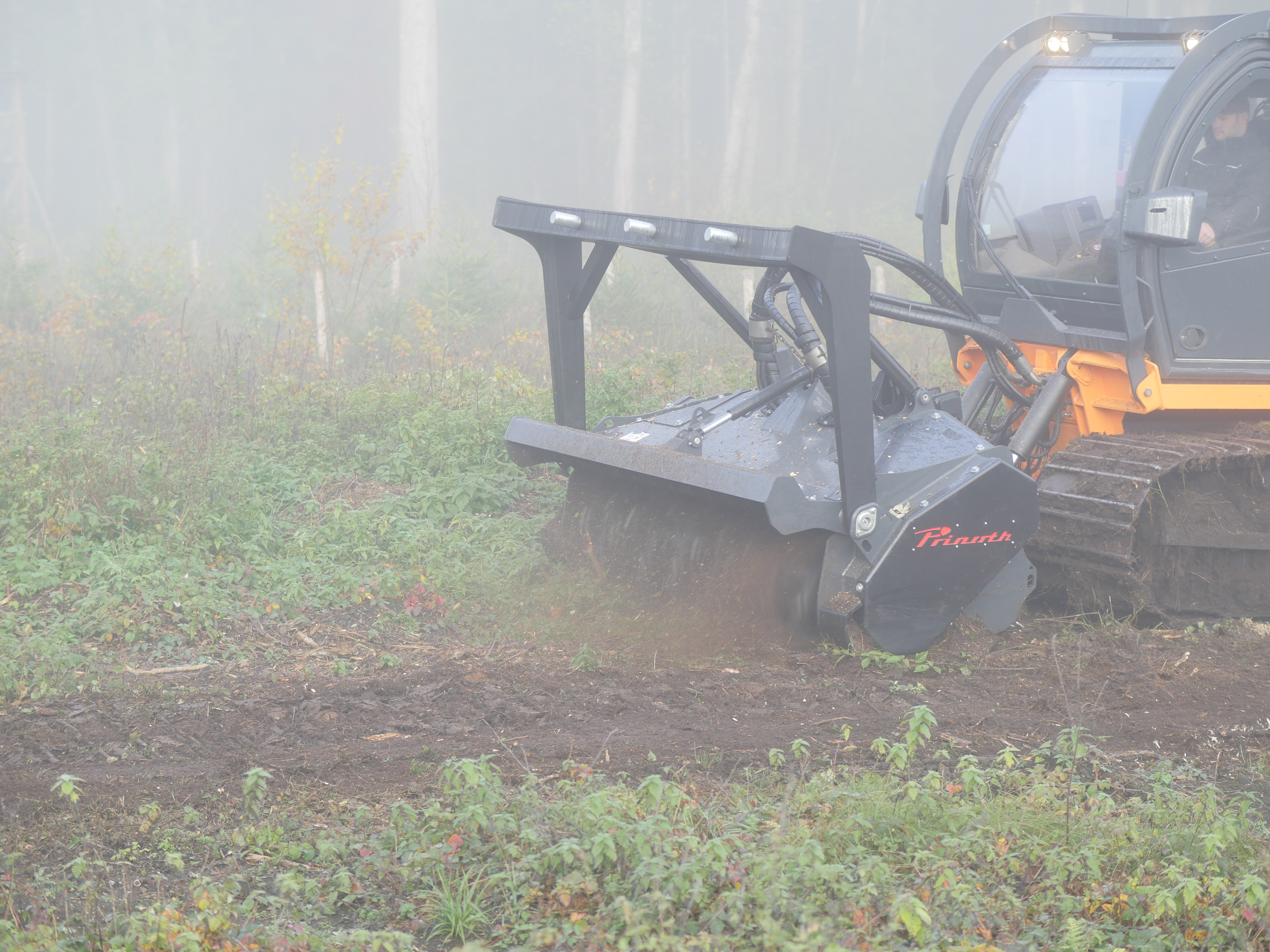

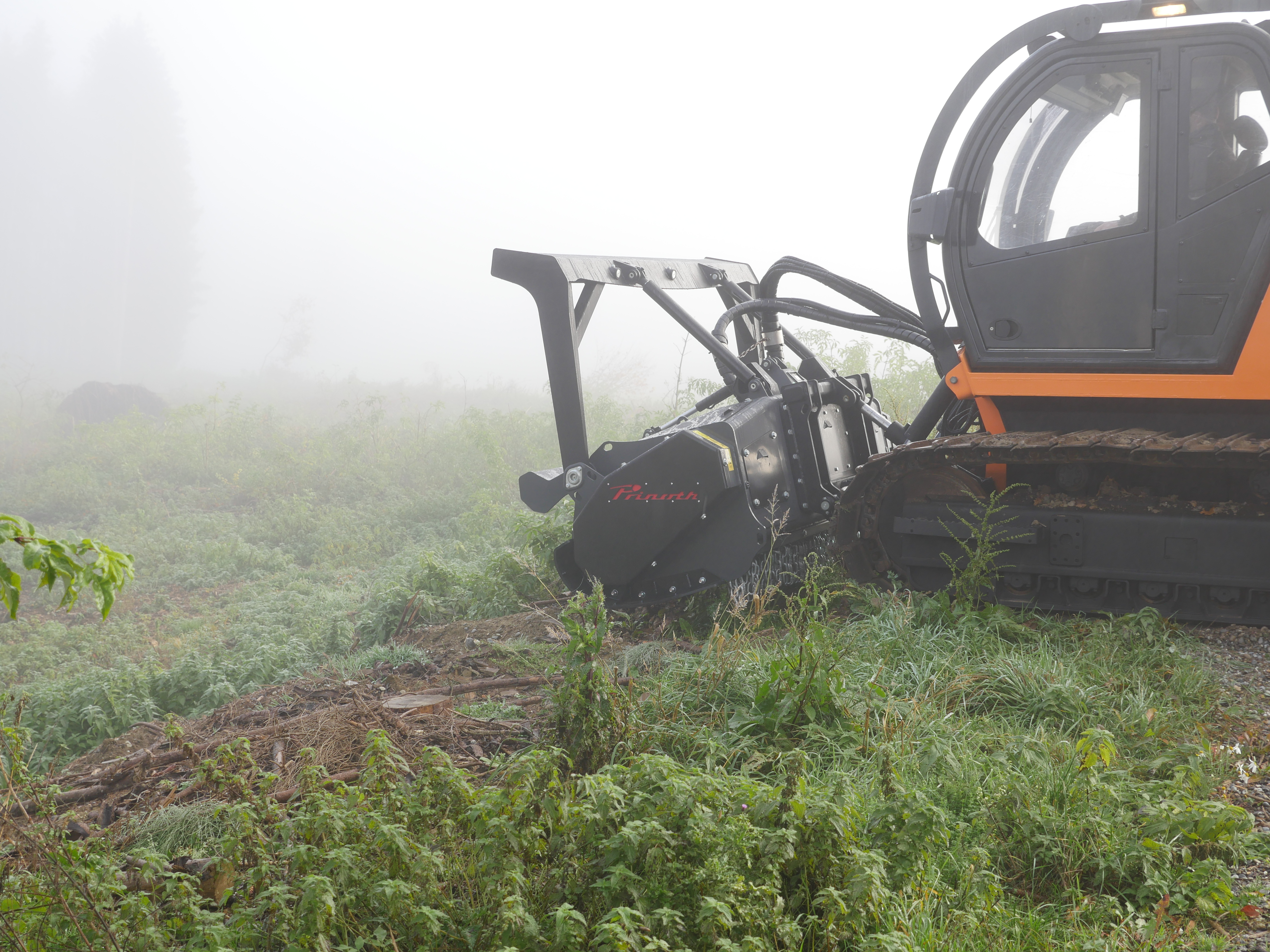

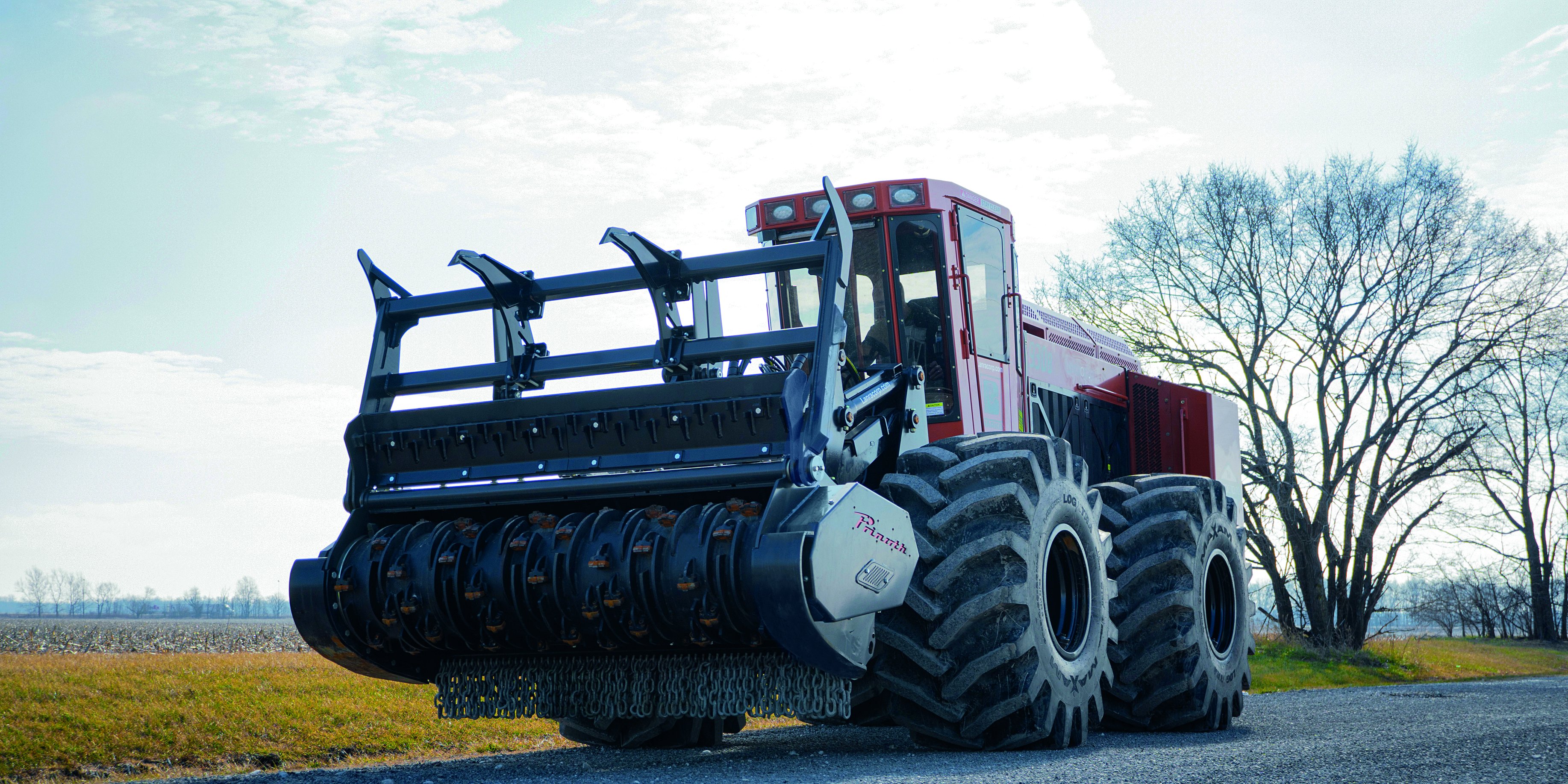

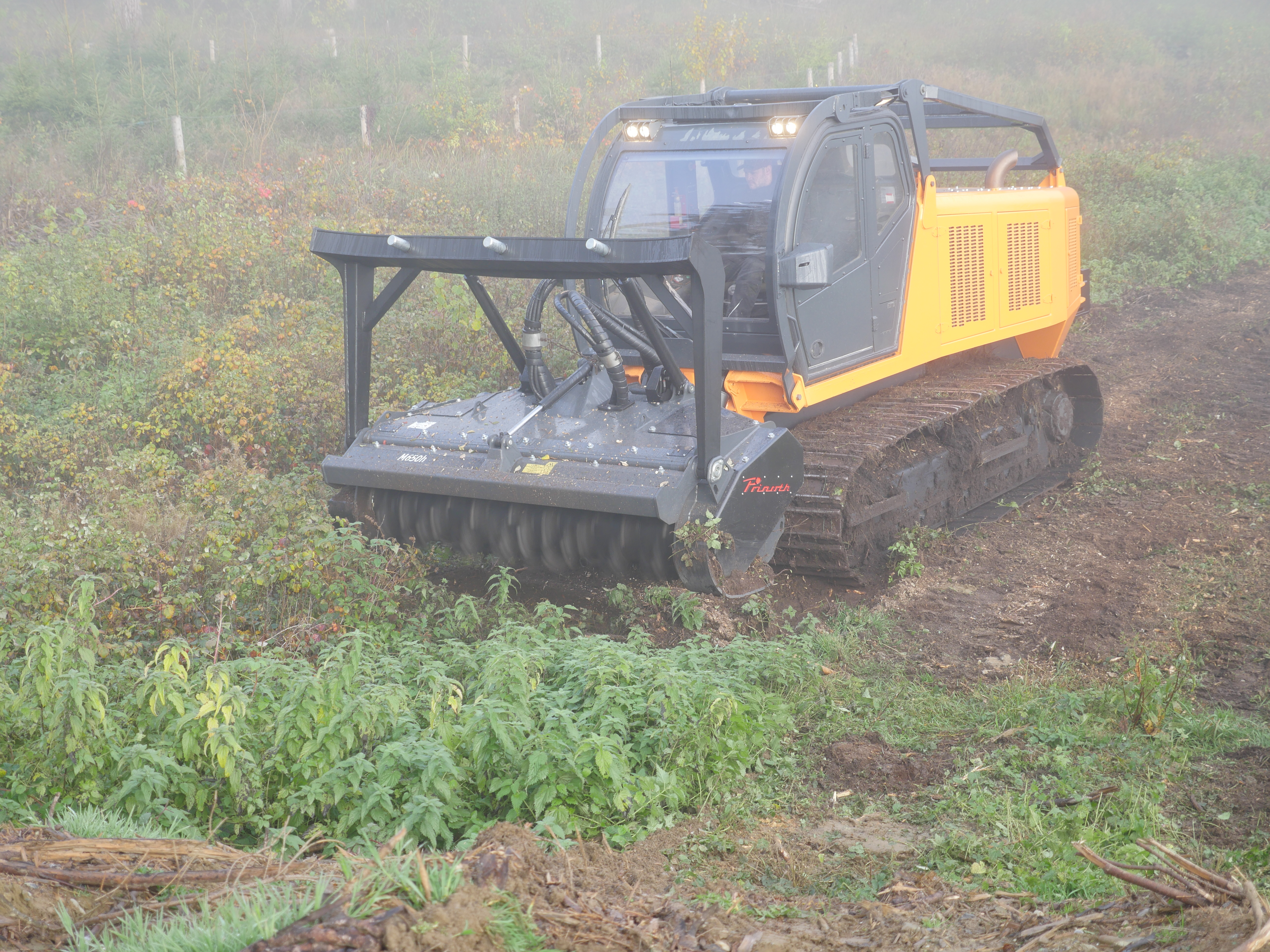

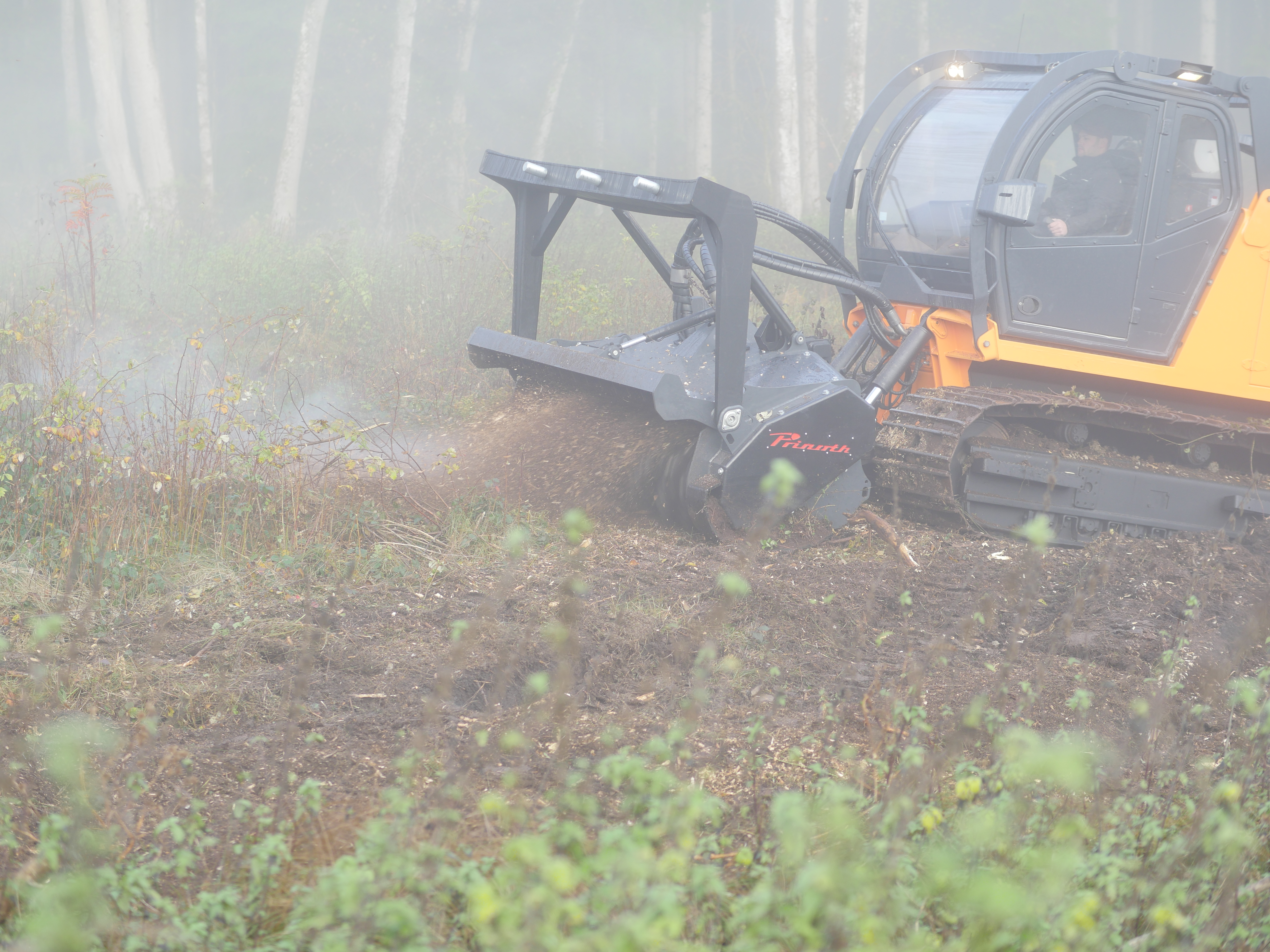

The Grizzly M650h is a strong hydraulic driven mulcher and is excellent for carrier vehicles with a volume flow up to 570 l/min (150.6 gpm). It is ideal for shredding branches and trees with a maximum diameter up to 40 cm (16 in).
Features

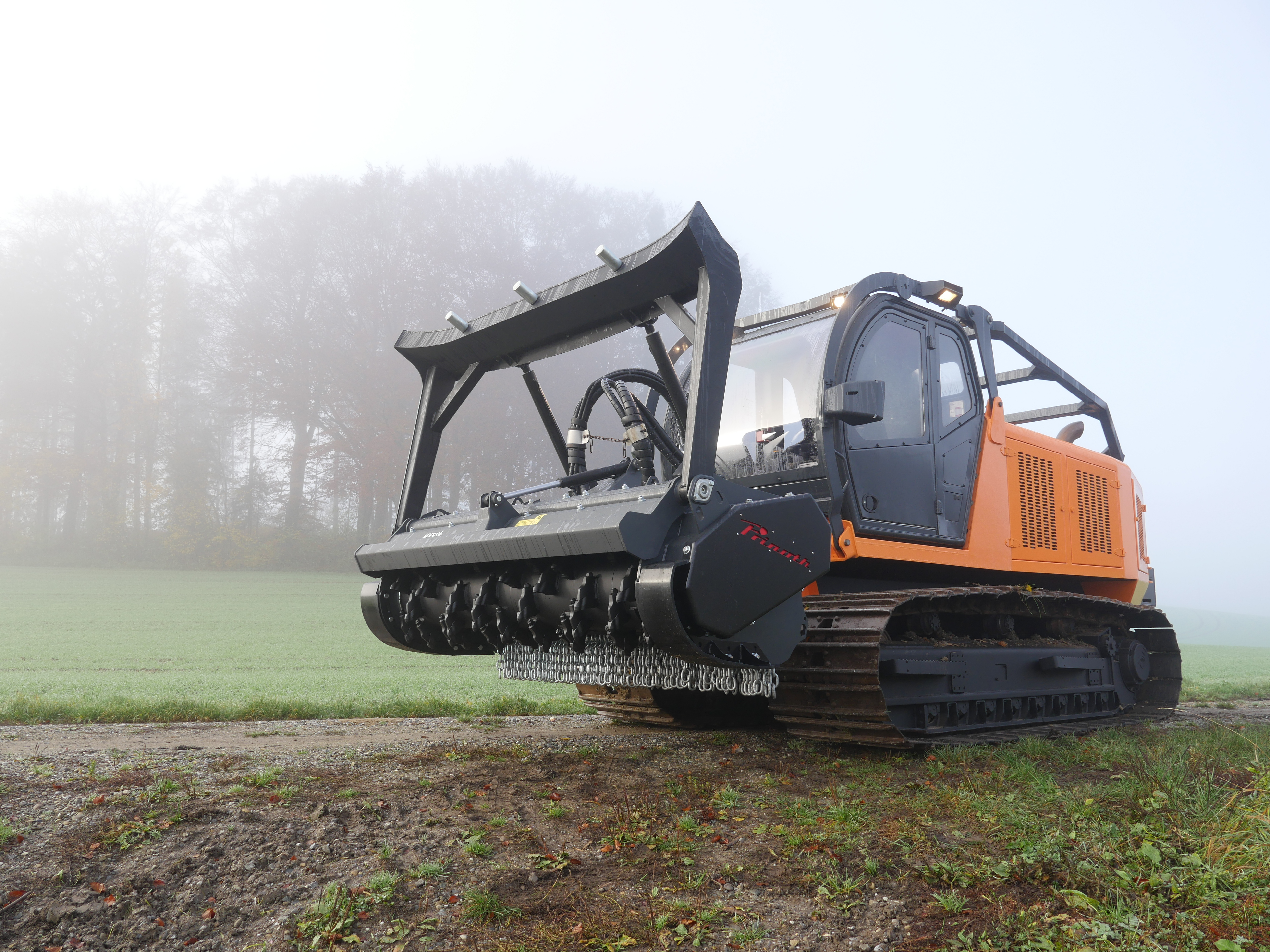

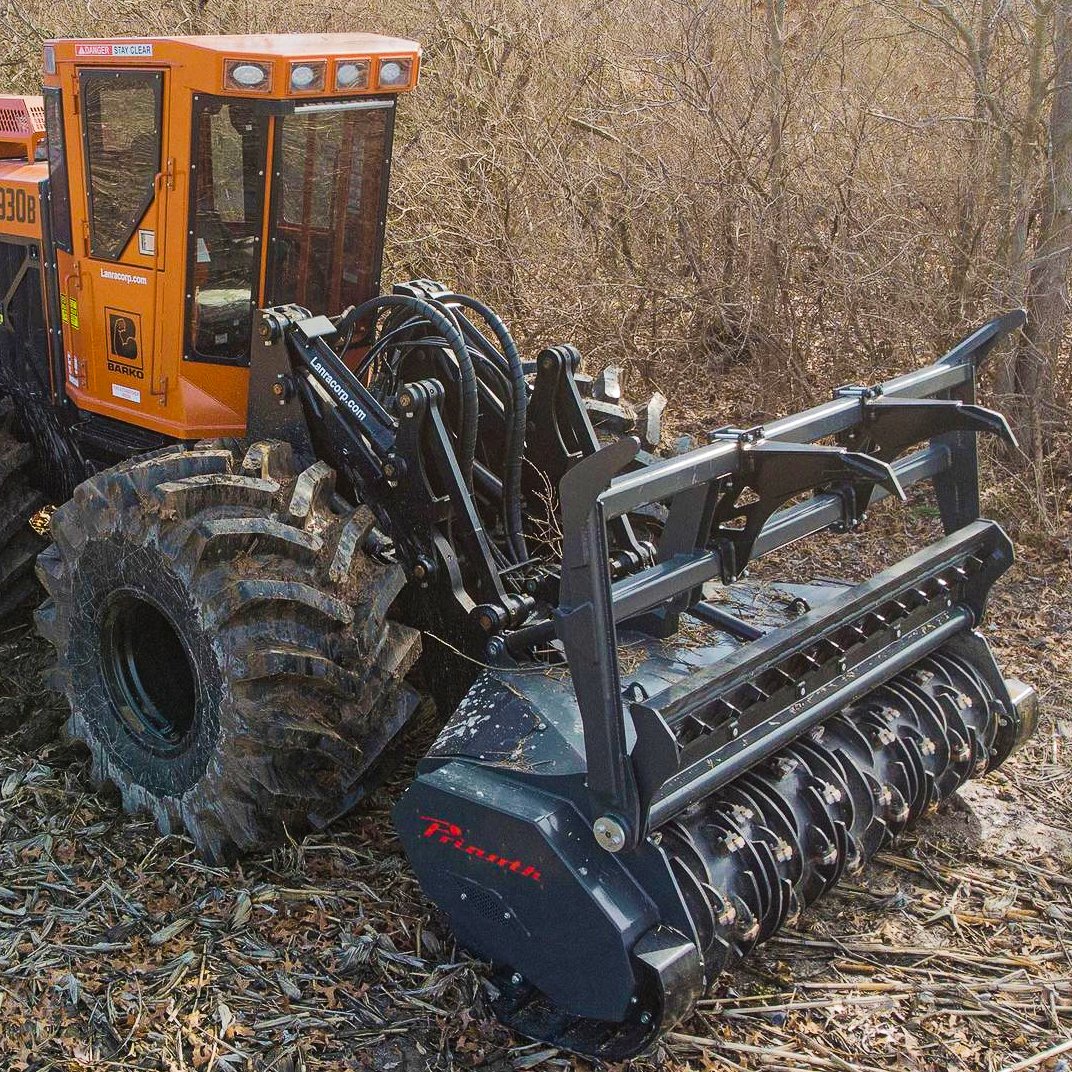

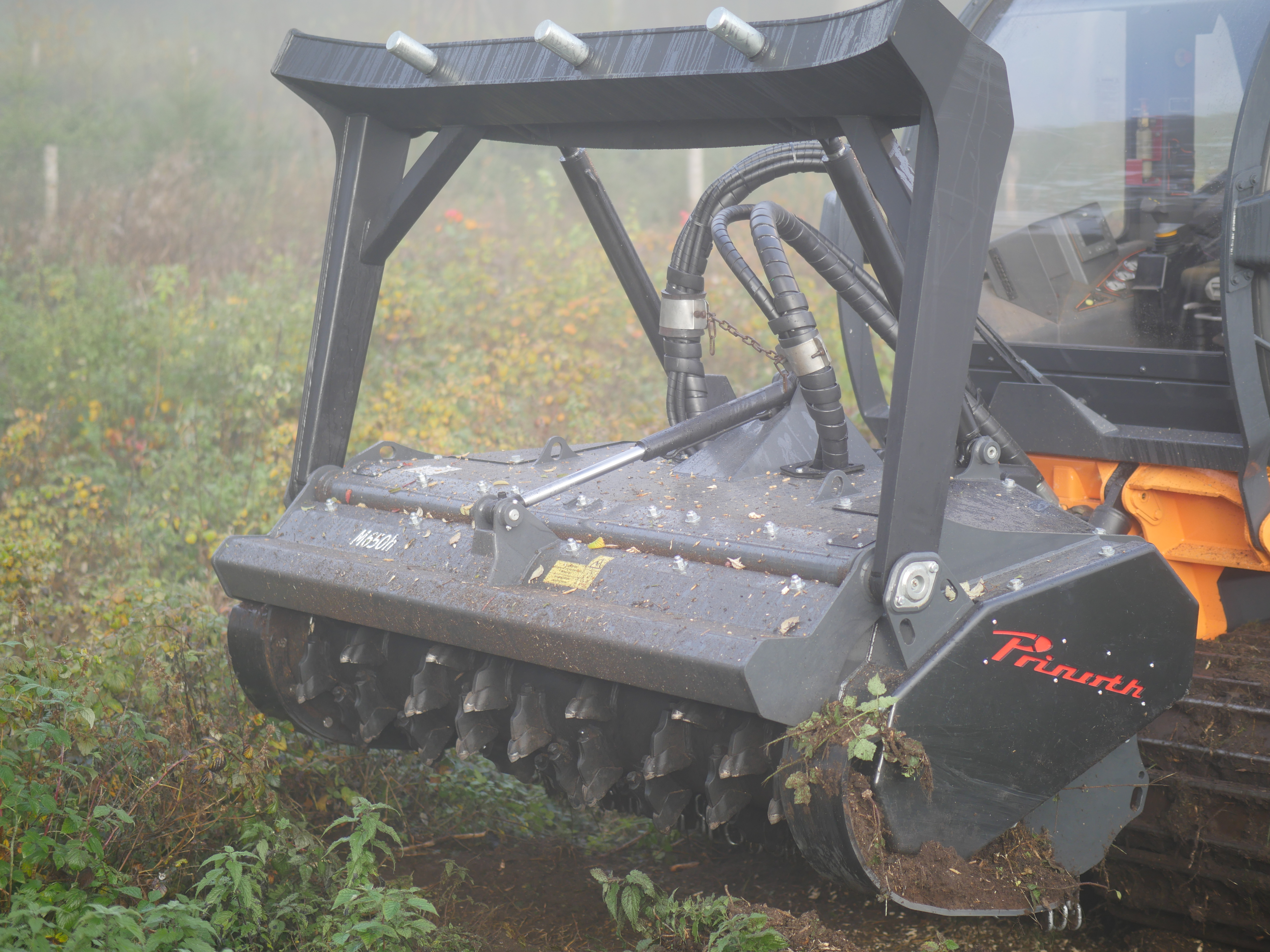

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins or teeth.
Customized interfaces for simple mounting / demounting on various carriers with different options available.
For different applications there are standard or deep milling skids available.
Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable. An additional row with 21 carbide tipped counter blades in a row at the housing edge.

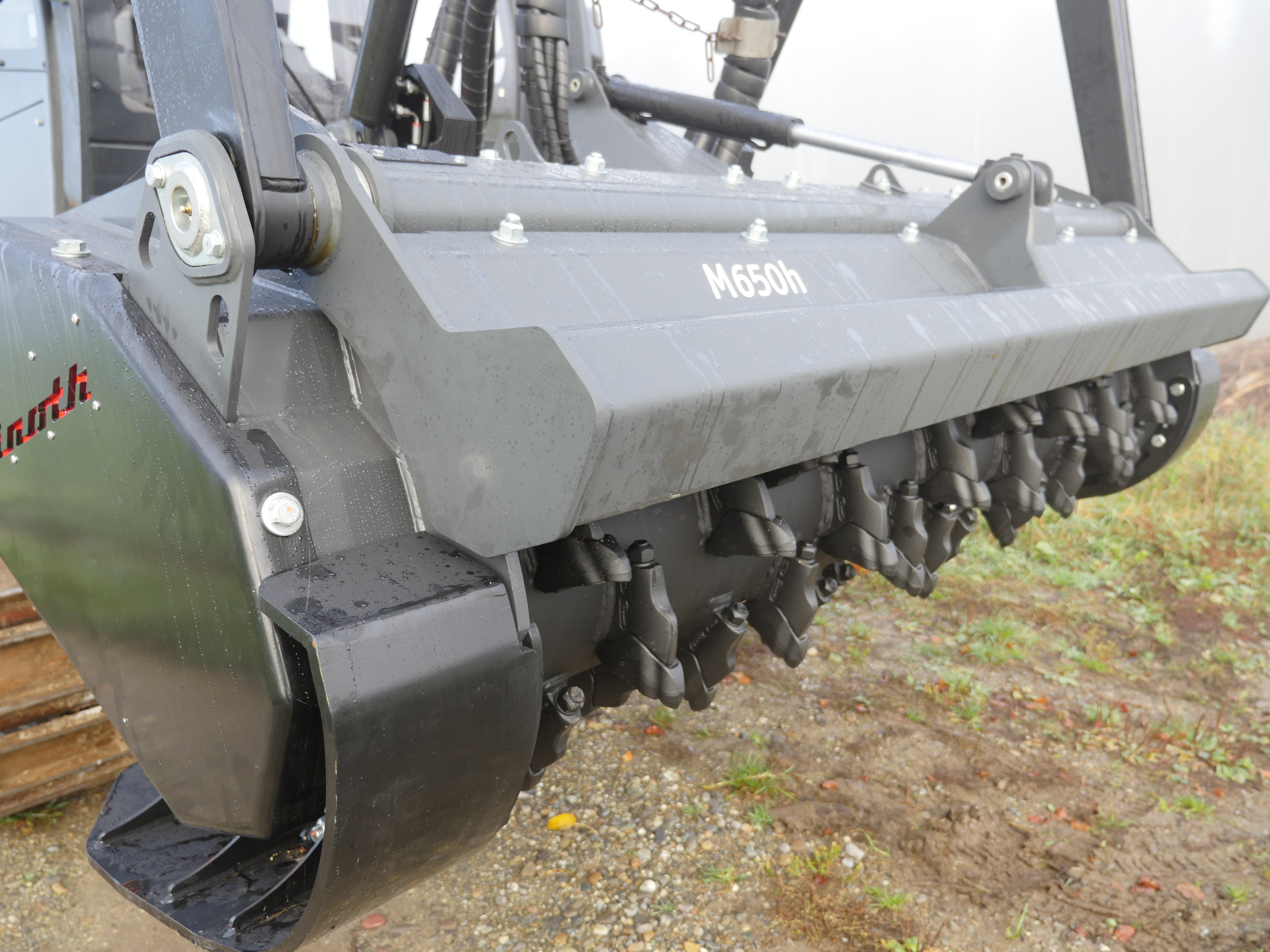

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.
Rotor also available with UPTs tools. Maximum reliability, built against highest impacts and loads.
Powerful and high efficiency dual drive with 170 cc or 280 cc HD - variable displacement motors for maximum performance.
The low maintenance poly chain system effectively prevents slippage and saves valuable time.

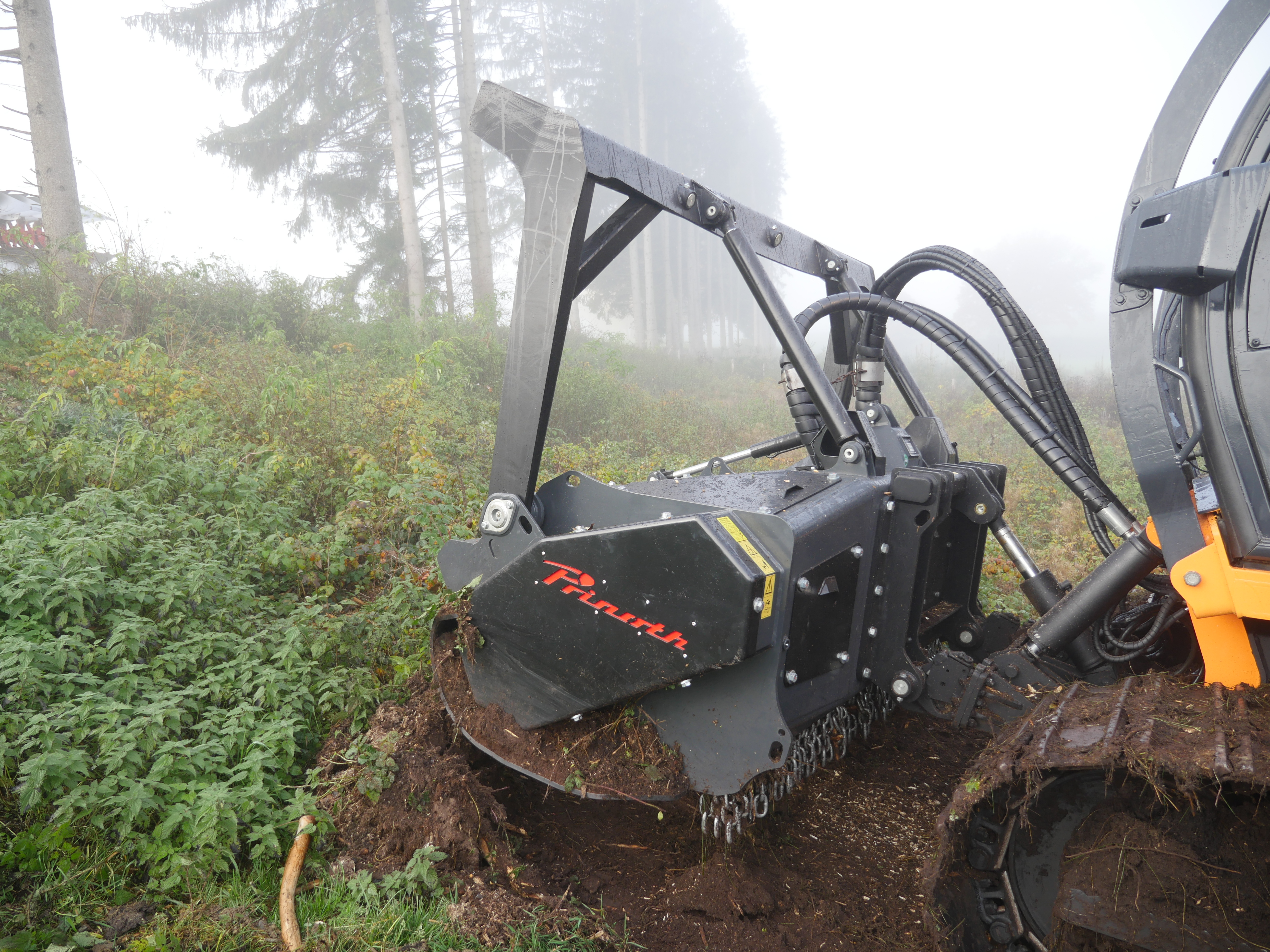

The chain curtain provides extra protection while mulching.
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
Supporting legs are available for a stable and safe stand on the ground and during transport.
-
Working width
92.5 in2,350 mm -
Total width
110 in2,800 mm -
Weight
8,377 lbs3.800 kg -
Rotor diameter
25.6 in650 mm -
Tools
64 x BCS / 56 x or 72 x UPTs64 x BCS / 56 x or 72 x UPTs -
Volume flow
up to 116,2 – 150,6 gpmup to 440 – 570 l/min
-
Hydraulic motor
2 x 170 cc // 2x 280 cc2 x 170 cc // 2x 280 cc
