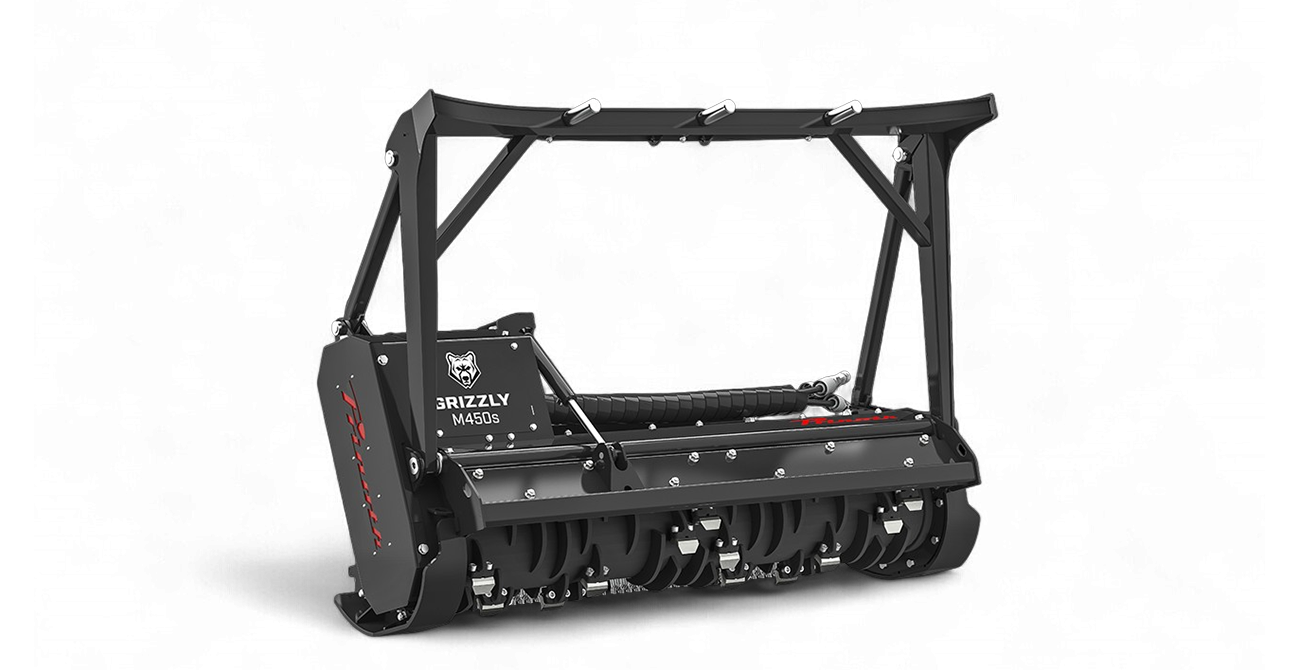

GRIZZLY M450s
Forestry Mulcher for skid steers.
Power
Diameter mulching material
Working width
Grizzly M450s
The M450s mulcher is designed for the compact loader segment like skid steers or other hydraulic driven carrier vehicles from 70-180 hp.
Features
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.
BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.
Rotor also available with UPTs tools. Maximum reliability, built against highest impacts and loads.
Powerful and high efficiency 107 cc or 170 cc HD - variable displacement motor for maximum performance.
The low maintenance poly chain system effectively prevents slippage and saves valuable time.
The skids are designed to allow a flexible working performance. Due to the shape, it is possible while tilting that the rotor has an improved contact to the ground material.
The fixed push bar guides taller material into the rotor in a targeted and safe manner.
Hydraulic flap (optional electronical controlled) with counter blades ensure better shredding of material and provides extra protection while mulching.
The chain curtain provides extra protection while mulching.
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
Customized interfaces for simple mounting / demounting on various carriers with different options available.
Technical data
Download (PDF)
-
Power
70 – 180 hp70 – 180 PS -
Diameter mulching material
12 in30 cm -
Working width
63 / 74.8 / 86.8 inin1,600 / 1,900 / 2,200 mm -
Volume flow
22.5-52.8 / 24.6-52.8 / 31.7-66 gpm85-200 / 100-200 / 120-250 l/min -
Variable HD displacement piston motor
107 cc // 107 cc // 107/170 cc107 cc // 107 cc // 107/170 cc -
Total width
74.8 / 86.6 / 98.4 in1,900 / 2,200 / 2,500 mm
-
Tools
32xBCS/40xUPTs // 40xBCS/48xUPTs // 48xBCS/56xUPTs32xBCS/40xUPTs // 40xBCS/48xUPTs // 48xBCS/56xUPTs -
Weight
2,513 / 2,688 / 3,042 lbs1,140 / 1,210 / 1,380 kg
